S4C000209

Marca	J+J Automation
Prodotto	S4C000209
Descrizione	attuatore
Codice interno	PRT4042938
Codice doganale	85437090

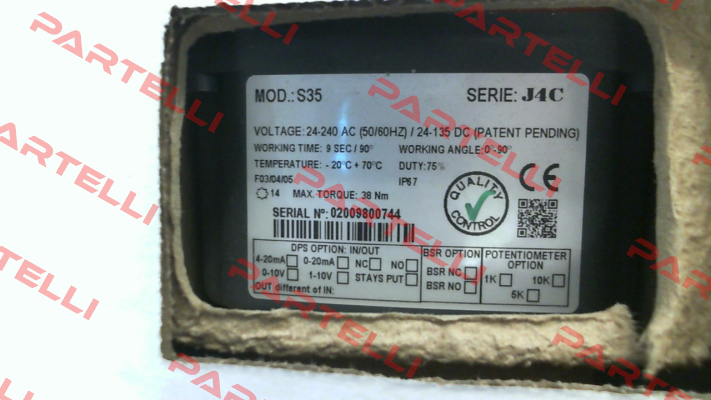

Specifiche tecniche	J4C-S35 mF/14mm standard with dome IP67 quarter-turn drive - All-voltage 24-240VAC + 24-135VDC - Brushless motor with long service life, 75% ED - Manual override, visual position indicator - 2 potential-free limit switches and 2 distance switch - Integrated shutter heater, electronic Torque Limitation and Protection Circuit - Drive according to DIN EN 15714-2. Plug connections industry standard DIN/ISO. Robust PA6 plastic housing - Valve interface according to ISO5211 - F03/04/05, 14mm star recording (parallel and 45°). (The operating instructions must be strictly observed!)
